Westinghouse WR-214
1937
Westinghouse Electric
Supply Corporation,
150 Varick Street,
New York,
New York USA
|
|
|
| | |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|

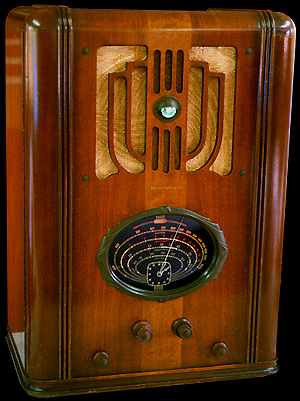

The WR-214 was the largest table model radio
Westinghouse produced for 1937 and is the sister set to the American
Bosch 670T. One main difference between the two sets, aside

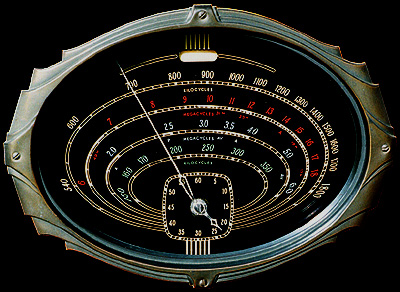

from cosmetic differences, is the tuning indicator. While the
670T uses a shadow tuning indicator that changes color to match the
band the set is switched to, the WR-214 uses a tuning eye tube in
place of the shadowing tuning indicator, though, the window where
the tuning indicator would have been still changes colors to match
the band the set is switched to. Today the WR-214 is
considered an extremely rare model to find which is quite a contrast
to the next model down, the WR-212 which is fairly common. I
purchased this set at the summer 1998 I.H.R.S. swap meet at
Indianapolis. |
|
|
| |
|
|
|
|
|
|
Tube Line
Up:
6K7G...R.F. Amplifier
6A8G...1st. Detector /
Oscillator
6K7G...I.F. Amplifier
6H6G...2nd. Detector /
AVC
6G5G...Tuning Indicator
6C5G...Audio
Driver.
6F5G...Audio Phase Splitter
2 x 6F6G...Audio
Output
5Y3...Rectifier |
|
|
| |
|
|
|
|
|
Frequency
Ranges:
LW Band (Green)...150kHz - 380kHz
BC Band
(Yellow)...540 kHz - 1800 kHz
P Band (Blue)...1.8 MHz - 6
MHz
SW Band (Red)...6 MHz - 18 MHz
I.F. Frequency...465
Khz |
|
|
| |
|
|
|
|
|
|
|
Measurements:
Height...24.25 inches
Width...17
inches
Depth...10 inches |
|
|
| |
|
|
|
|
|
Power Source:
110...Volts AC |
|
|
| |
|
|
|
|
|
|
|
|
|
The schematics
and Information for this radio can be found at the Nastalgia Air web
site by clicking on the link below. |
|
|
| |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
