Victoreen
1925
Victoreen Radio Inc.,
6526 Carnegie Avenue,
Cleveland, Ohio, USA

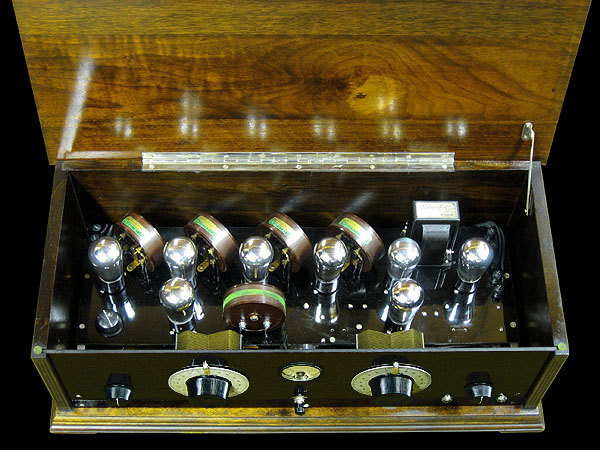

    This Victoreen receiver looks to be built from a kit. The chassis was predrilled as was the front panel but there are no control ID engravings or any brandname on the front panel. This receiver was designed to work off of a loop antenna and it's audio stages consist of one stage being transformer coupled and one stage being resistor/capacitor coupled.

Tube Line Up:
UX-201A...1st. Detector
UX-201A...Oscillator
UX-201A...1st. IF Amplifier
UX-201A...2nd. IF Amplifier
UX-201A...3rd. IF Amplifier
UX-201A...2nd. Detector
UX-201A...1st. Audio
UX-112A...2nd. Audio

Dimensions:
Height...19.5 inches
Width...16.5 inches
Depth...10.5 inches

Frequency Range:
BC Band...550 kHz - 1500 kHz
I.F. Freq...88 kHz

Power Source:
A Battery...+6 Volts
B Battery...+45 Volts
B Battery...+90 Volts
C Battery...-4.5 Volts

Schematic and information
