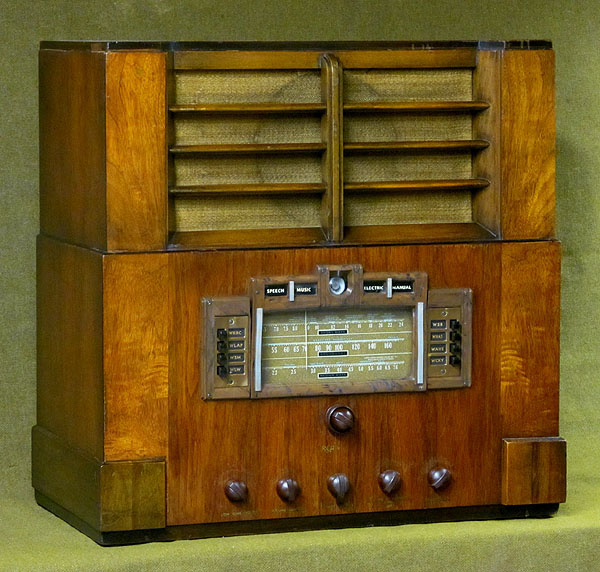

The RCA 811T was the largest table model radio for 1938 and incorporated  an caustically inclosed speaker for greater bass response. It's also the only table model radio, other then the model 99T, with motorized push button tuning that RCA marketed. The same 11 tube chassis was also used in the 811K console radio. The 811T is literally a table model radio with a console radio chassis installed in it. A push button remote control could be attached in order to tune in preset stations remotely. Today, the 811K is considered to be a fairly common model to find while the 811T is considered to be extremely rare with only a few examples known to existence. I acquire this set from Ebay in September of 2014.

Dimensions:
Height...21.75 inches
Width...15.5 inches
Depth...11.75 inches

Tube Line Up:
6K7M... R.F. Amplifier
6L7M...Mixer
6J7M...Oscillator
6J7M...Oscillator Control
6K7M...1st. IF
6H6M...2nd. Detector / AVC / AFC
6G5...Tuning Indicator
6N7M...Phase Inverter
6F6M X 2...Push Pull Audio Output
5T4...Rectifier

Power Source:
AC...110 Volts

Frequency Range:
BC Band "A"...530 kHz - 1720 kHz
MW Band "B"...2.1 MHz - 6.8 MHz
SW Band "C"...6.8 MHz - 23 MHz
I.F. Frequency...460 kHz

Schematic & Information
