"Mike-Radio"
1954
Universal Publicizers Inc.,
936 N. Michigan Ave.,
Chicago, Illinois USA
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The

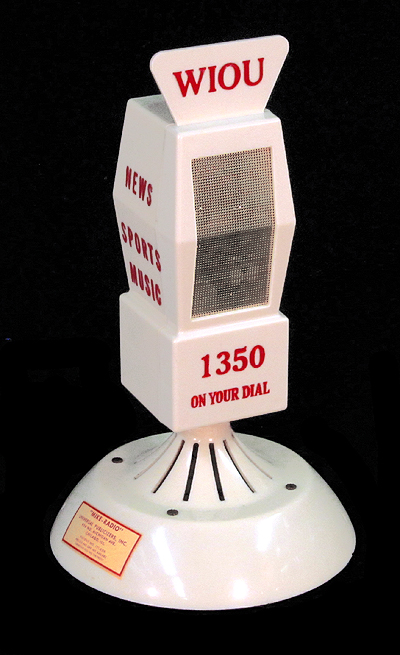

Mike-Radio was developed in 1954 as a radio station promotional item to
be given away to businesses who purchase advertisement time. It was the
hopes of the radio station that this item would be prominently
displayed at the business for the public to see. This particular radio
was produced to promote radio station WIOU of Kokomo, Indiana. It's
basically a five tube AM radio with a semi-fixed tuner that was set at
the displayed frequency, though, it can be tuned to other frequencies.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tube Line Up:
12BE6.....Mixer/Oscillator
12BA6.....I.F. Amplifier
12AV6.....2nd. Detector
50C5.....Audio Output
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimensions:
Height.....14.0 inches
Width.....8.0 inches
Depth.....8.0 inches
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

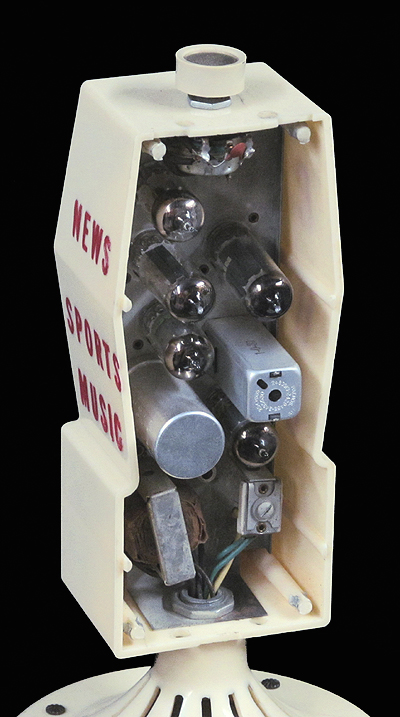

The front of the case snaps off in order to gain access of the tubes and chassis.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
