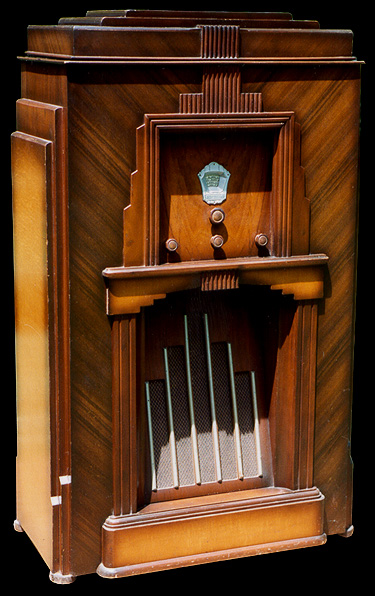

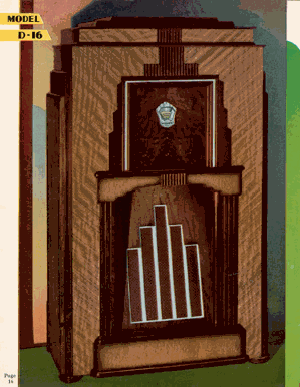

Midwest 16-34 (D-16)
1934
Midwest Radio Corporation,
909 - 911 Broadway,
Cincinnati, Ohio, USA

Tube Line Up:
6D6...R.F. Amplifier
6C6...1st. Detector / Mixer
56...Oscillator
78...1st. I.F. Amplifier
78...2nd. I.F. Amplifier
6B7...2nd. Detector
6B7...I.F. AVC
37...Static Control
37...1st. Audio
2 X 37...2nd. Audio
4 X 45...Push - Pull Parallel Audio Output
5Z3...Rectifier

Dimensions:
Height...45.75 inches
Width...28 inches
Depth...15 inches

Frequency Ranges:
LW Band...125 kHz to 350 kHz
BC Band...550 kHz to 1500 kHz
P Band...1.5 MHz to 4.5 MHz
SW1 Band...4.5 MHz to 12 MHz
SW2 Band...12 MHz to 32 MHz
AM I.F. Frequency...456 kHz

Power Source:
AC...110 Volts

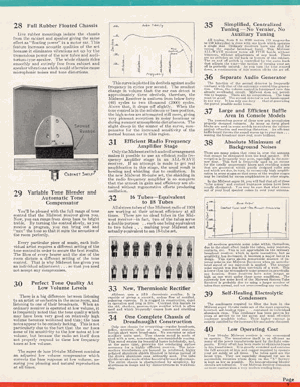

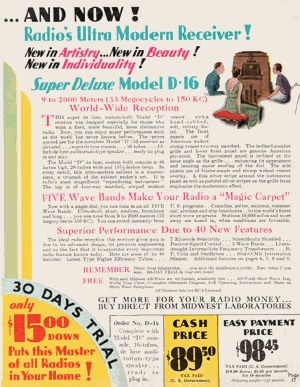

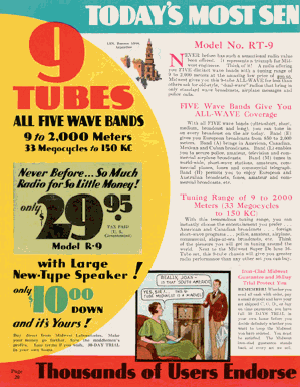

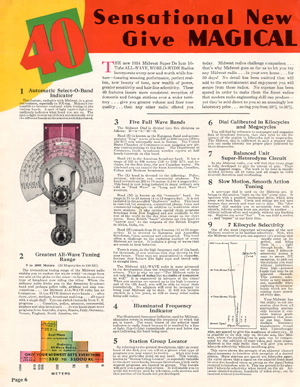

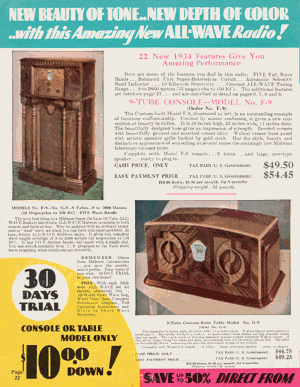

    The schematic for this radio can be found at the Nostalgia Air web site by clicking on the links below.

Schematic and information

Click here to view, by means of TerraServer, the lot where the Midwest factory once stood.

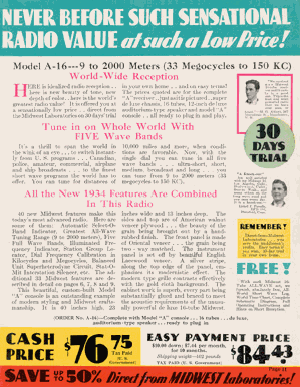

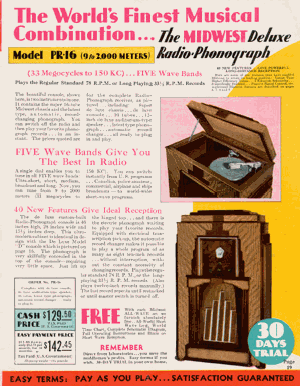

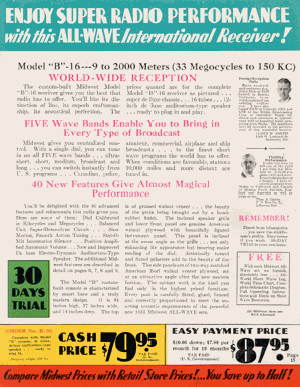

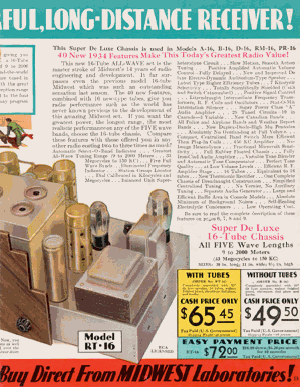

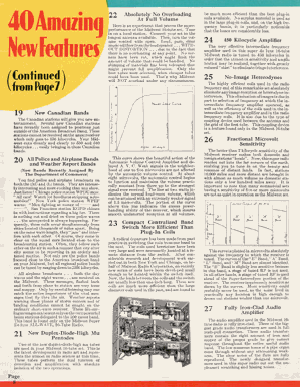

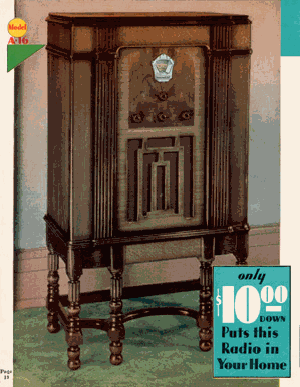

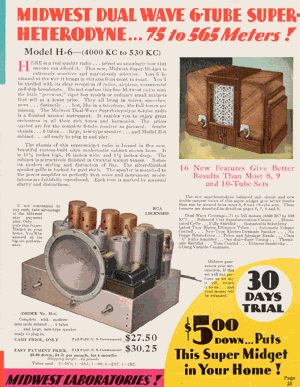

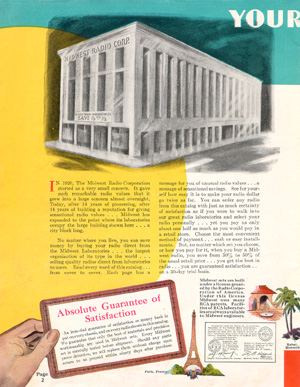

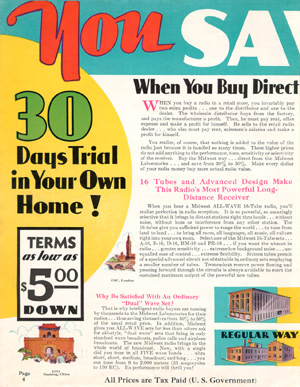

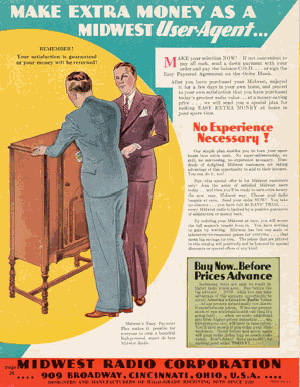

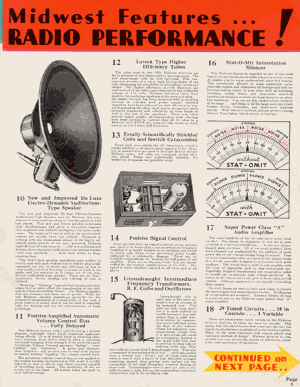

    A special thanks to Mike Simpson of  Midwest Radio Museum for loaning me his 1934 Midwest catalog in which I was able to scan the above pages from.
