Grunow 572
1937
General Household Utilities
Company
2680 N. Pulaski Road,
Chicago, Illinois,
USA
|
|
|
| | |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|

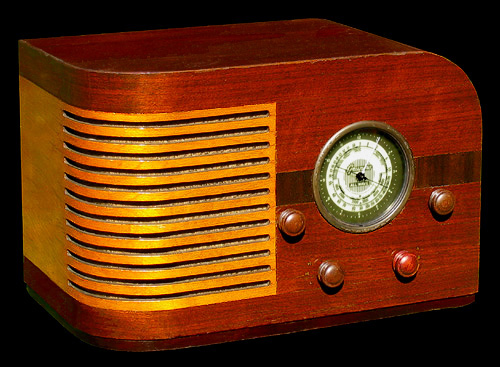

The 572 is probibly one of the more stylish and streamlined
models that was ever offered by Grunow. I aquired this set at
the 2004 Radiofest which was held at Elgin, Illinois. |
|
|
| |
|
|
|
|
|
|
Tube Line
Up:
6A8M...1st. Detector / Oscillator
6K7M...I.F.
Amplifier
6Q7M...2nd. Detector / AVC / Audio
Driver
6F6M...Audio Output
5Z4...Rectifier |
|
|
| |
|
|
|
|
|
Measurements:
Height...18.25 inches
Width...12.25
inches
Depth...11.50 inches |
|
|
| |
|
|
|
|
|
Frequency
Ranges:
BC Band ...550 kHz - 1800 kHz
P Band ...1.7 MHz - 6
MHz
SW Band ...6 MHz - 18 MHz
I.F. Frequency...465
kHz |
|
|
| |
|
|
|
|
|
|
|
Power
Source:
AC...110 Volts |
|
|
| | |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
The Grunow
572 dial consists of two layers. The top portion consists of a
clear celluloid layer with the dial scales printed on it. The
bottom portion is made of glass with a Green and White
background printed on it. Illumination is accomplished with
two dial lights mounted on opposite sides of the dial, and
when lit, the dial gives off a soft white illumanicance
similar to that of a fluorescent lighted clock. |
|
|
| | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
