DeForest Crosley
"Connaught"
1936
Deforest Crosley Limited,
Toranto, Canada

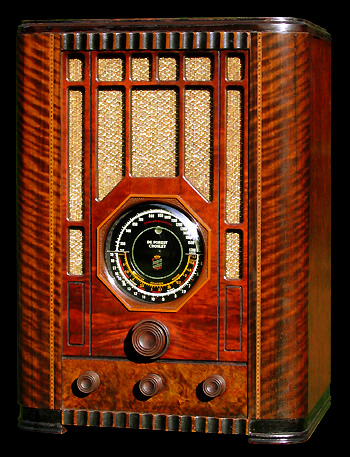

    The "Connaught" was Deforest Crosley's top of the line table model set for 1936.  It was actually manufactured by Rogers Majestic Limited of Toronto and shares the same chassis as the Rogers model "Ten-60" and the Majestic "Jolliette".  The information label attached to the inside of the radios cabinet identifies this model as the "Connaught" while the schematic for this set, found in the Radio Collage of Canada books, identifies this set as the "Connought".  Tuning on this radio is aided by a special 24 volt light bulb mounted on the dial that would stay lit but would dim as soon as a station is tuned in.  I purchased this radio from a Minnesota radio collector in the late 1980s.

Tube Line Up:
88M...R.F. Amplifier
6A7M...1st. Detector / Oscillator
88M...I.F. Amplifier
6B7M...2nd. Detector
6F6M...Audio Output
80...Rectifier

Dementions:
Hight...21 inches
Width...15 inches
Depth...11.25 inches

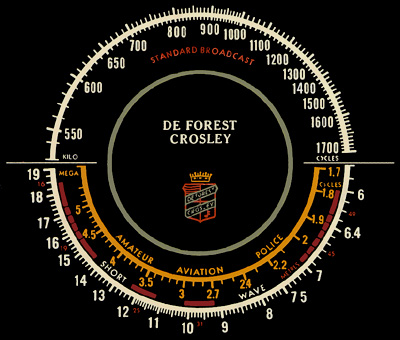

Frequency Range:
BC (White)...550 kHz - 1700 kHz
P (Yellow)...1.7 MHz - 5.3 MHz
SW (White / Red)...6 MHz - 19 MHz
I.F. Frequency...456 kHz

Power Source:
AC...110 Volts

    The schematic for this set can be found in the Rogers "Replacement Parts and Circuits 1935-1937" page 19.  The schematic for this radio can be found at the Nostalgia Air web site by clicking on the link below.

Schematics and information
