Crosley B695 (636)
1936
Crosley Radio
Corporation,
1329 Arlington Street,
Cincinnati, Ohio,
USA
|
|
|
| | |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|

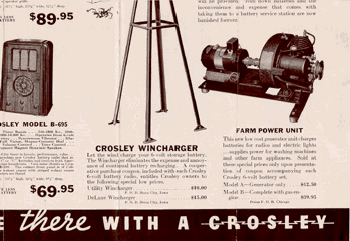

The B695,
standing at 23 9/16 inches, was the second largest tombstone radio
that Crosley offered in 1936, the largest being the B599 which stood
at 25 3/4 inches. The B695 was farm set running on a single 6
volt battery that it converted, by means of a vibrator unit mounted
on the chassis, to a higher voltage for the B+ power

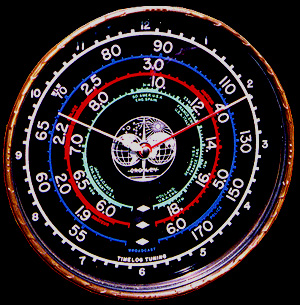

requirements. The glass dial has three bands printed in the
colors of Red, White, Blue and light Green. Only one call
letter is present on the dial, WLW, which was Crosley's own
station. I acquired this set at the 1999 Radiofest swap meet
at Elgin, Illinois. |
|
|
| |
|
|
|
|
|
|
|
Tube Line
Up:
15...R.F. Amplifier
6A7...1st.
Detector/Oscillator
6B7...I.F. Amplifier
15...2nd.
Detector/AVC
15...Audio Driver
19...Push - Pull Audio
Output |
|
|
| |
|
|
|
|
Measurements:
Height...23.75 inches
Width...17
inches
Depth...9.75 inches |
|
|
| |
|
|
|
|
|
Frequency
Ranges:
BC Band (Blue)...550 kHz - 1700 kHz
P Band
(Blue)...1.9 MHz - 6 MHz
SW Band (Red)...6 MHz - 18 MHz
I.F.
Frequency...450 Khz |
|
|
| |
|
|
|
|
|
|
|
Power Source:
DC...6 Volts |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The schematic for this radio can be found at the
Nostalgia Air web site by clicking on the link
below. |
|
|
| | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Schematic and
information |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
