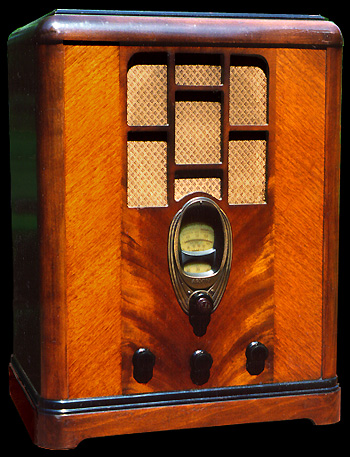

Arvin 61M
1936
Noblitt-Sparks Industries Inc.,
Columbus, Indiana USA

Tube Line Up:
6K7G...1st. R.F. Amplifier
6A8G...1st. Detector / Oscillator
6K7G...I.F. Amplifier
6H6G...2nd. Detector / AVC
6F5G...Audio Driver
6F6G...Audio Output
5Z4G...Rectifier

Dementions:
Hight...21.5 inches
Wedth...16 inches
Depth...11 inches

Frequency Range:
BC Band...535 Khz - 1,750 Khz
P Band...1,700 KHz - 5,750 KHz
SW1 Band...5,500 KHz - 18,000 KHz
I.F. Frequency...445 Khz

Power Source:
AC...110 Volts

  The schematic for this radio can be found at the Nostalgia Air web site by clicking on the links below.

Schematic and information
