American
1937
Unknown Distributor
Manufactured by
Pacific Radio Corp.,
844 W. Adam Street,
Chicago, Illinois, USA
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tube Line Up:
6A7...1st. Mixer/Oscillator
6D6...I.F. Amplifier
75...2nd. Detector
6G5...Tuning Indicator
25L6...Audio Output
25Z5...Rectifier
L49C...Ballast
|
|
|
|
|
|
|
|
|
|
Dimensions:
Height...7 inches
Width...10 inches
Depth...6 inches
|
|
|
|
|
|
|
|
|
|

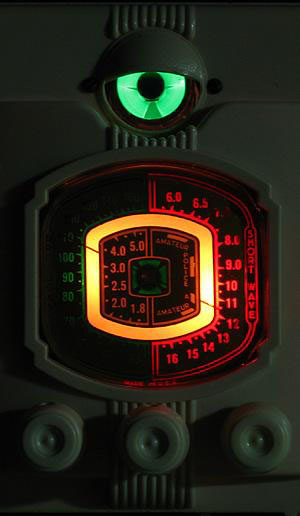

Frequency Range:
BC (Green)...550 kHz to 1600 kHz
SW1 (White)...1.8 MHz to 5.0 MHz
SW2 (Red)...6.0 MHz to 16 MHz
I.F.Freq...465 kHz
|
|
|
|
|
|
|
|
|
|
|
|
Power Source:
AC/DC...110 Volts
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Click here
to view the schematics and Information for this radio can be found at
Nostalgia Air web site by clicking on the links below.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
